Nomad Wings Lite



Nomad Wings Lite | Installation Guide

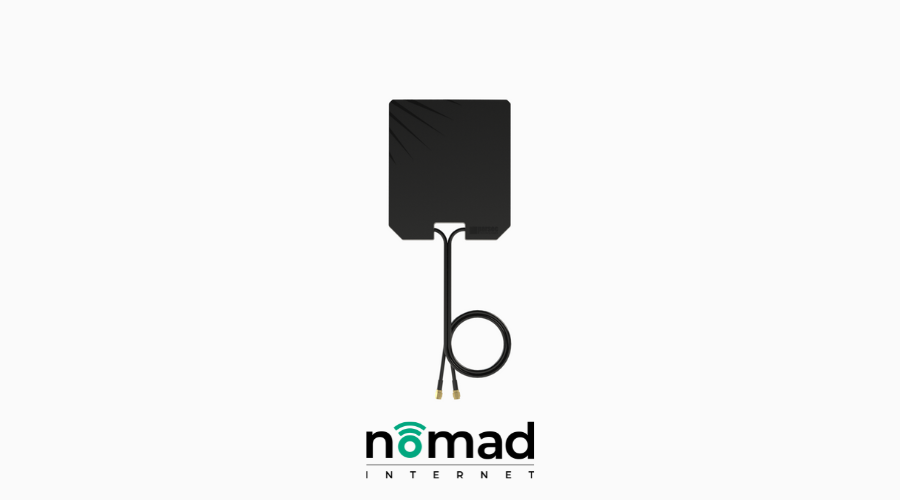

A 5G antenna with 2X2 MIMO cellular, omni-directional, window/wall mount or countertop stand mount. Designed to enhance remote work and learning with access to high-performance 600 MHz to 6 GHz 4G/5G frequencies 📶.

This compact, indoor antenna ensures high-speed data with a simple installation, compatible with most routers and hotspot devices.

Configurations: 2:1

  • Ideal for: Home Network 🏡 | Remote Learning K-12 📚 | Remote Monitoring 🔍

Features

  • Versatile Mounting: Window, wall, or tabletop mount

  • High Data Speeds: High-capacity throughput for streaming

  • Indoor Use: Subtle design for indoor applications

Specifications

  • 2X2 MIMO Cellular

  • Omni-Directional

  • Frequency Range: 600 MHz - 6 GHz

  • Aesthetic Design: Desk, wall, or window mount options

  • Dimensions: 6.10 in X 7 in X 0.9 in

Technical Specifications

Frequency Range

Efficiency (%)

Peak Gain (dBi)

Return Loss (dB)

Isolation (dB)

617-894 MHz

70%

2.5

6

10

1710-2700 MHz

60%

2.0

6

10

3400-4000 MHz

50%

4.0

5

20

5150-5925 MHz

50%

4.0

9

20

Polarization: Linear
Max Input Power: 5 Watts
RF Connectors: SMA(M)
RF Cable Type: LSR200-UF

Mounting Options

  • Suction cups provided for window mounting

  • Screw and anchor for wall mounting

  • Built-in legs for tabletop use
